Single single opening device is widely used. Its structure is similar to that of the vertical cutting machine.
In addition to the single station guide opening device, duplex station and three-station guide opening device are also used in the production, because they have more than one standby station, therefore, the advantages of short roll time and high efficiency.
fundamental structure
Bedroom cutting machine is used to cut tires or tape with wide width.

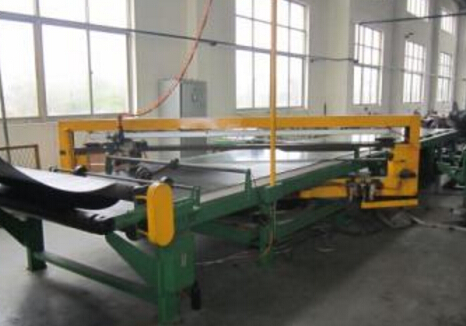

It is mainly composed of guide opening device 1, single ring cloth storage device 2, cloth delivery device 3, length fixing device 5, cloth cutting device 4, etc.
The tape roll is placed on the guide device, the pad roller rotates, and the tape is opened when the pad is rolled.
The open tape enters the cloth distribution device through the single-ring cloth storage device.
The tape is sent by the cloth delivery device. After the length of the manual or photoelectric length fixing device, the cloth is stopped. When the cutting device is started, the press edges the cloth, and the cutter car runs along the slide with a high-speed rotating blade to complete the cutting tape.
Then the cutter cart stops the cutting and returns to the original position.
Transmission mode structure of the cutting press machine
Transmission mode, structure and use of the cutting machine
1, according to the transmission form:
A, mechanical transmission cutting machine: it is A relatively old machine.
B. Hydraulic transmission cutting machine: is a modern common cutting machine, according to the age can be divided into the first generation of plane rail hydraulic cutting machine & lt; / a & gt;, the second generation of ordinary four-column hydraulic cutting machine, the third generation of precision four-column hydraulic cutting machine and gantry mobile hydraulic cutting machine., Automatic rolling cutting machine: with the method of sandwich processing the whole leather or textiles.
D. Computer controls the water beam
Cutting machine: is a modern more advanced cutting machine, do not need to use the knife mold, according to the input program for cutting. The cutting source is the high pressure beam generator.
E. Computer controlled ultrasonic cutting machine: the control form is similar to the water beam cutting machine, and the cutting source is ultrasonic generator.
2. According to the structure mode:
A, rocker arm cutting machine: cutting parts can be swinging the rocker arm, suitable for leather, natural materials and artificial leather and other non-metal materials.
B. Longmen moving cutting machine: the cutting parts are the cutting head that can be moved along the side of the beam. The knife mold can be fixed on the cutting head or placed on the processed material. The large, computer-controlled gantry cutting machine is equipped with a rotating tool die frame, which can be selected according to the program typesetting; of course, an automatic feeding mechanism shall be provided accordingly.
C, flat plate type cutting machine: the difference between it and the gantry type cutting machine is that the beam directly cutting, there is no movable cutting head.
Flat plate cutting machine is divided into: beam fixed or beam can be moved back and back and the platform skateboard can be moved front and back two categories.
D, four-column precision
Cupping machine: double cylinder, four-column automatic balance connecting rod structure.
3. According to the purpose of the processed parts:
A, special cutting machine: suitable for the blister processing of the suction plastic cutting machine.
B, horizontal cutting machine: suitable for processing tire materials.
