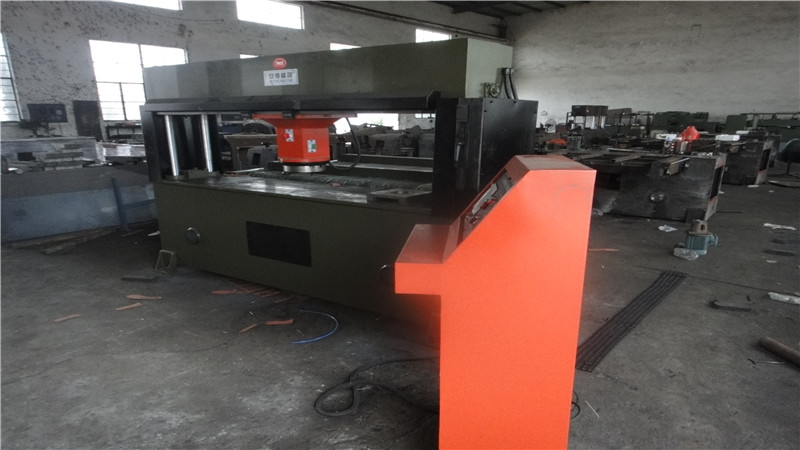

HYL3 precise four column automatic step feeding travel head hydraulic cutting press machine
Uses And Features
The machine is mainly suitable for cutting the materials such as rubber, plastic, paper-board, fabric, chemical fibre and other materials, which is a wide format and be roll material, with shaped blades.
1. Use double cylinder and gantry oriented and automatically balancing links to ensure same cutting depth in every cutting region.
2. Have setting structure especially, which makes adjustment of stroke safe and accurate coordinating with cutting force and cutting height.
3. With automatically controlling transverse movement speed of punch head moving to lateral and feeding materials via computer, the operation is laborsaving, simple and safe and the cutting efficiency is high. FUNCTIONAL FEATURES “NESTING” CHIESA CAD The F.1 cutting press features an optional CAD-OPTIMISER designed to improve the placement of the cutting die on the material to be cut. A rapid system that is simple and easy to use obtains the cutting die’s exact geometry directly from the mounting plate, detecting eventual dephasing of the baricenter or by DXF…
QIANGCHENG & CLAMPING FEEDER
THE QIANGCHENG THE FIRST PATENTED ELECTRICALLY DRIVEN AUTOMATIC CUTTING PRESS (NO HYDRAULICS)
• Greater control over die-cutting operations
• Possibility of optimising cutting in relation to materials and type of die-cutting tool used
• Reduction of direct costs by 50%
• The cutting press absorbs electrical power only at the moment of punching
• Reduced noise emissions
• Less maintenance on installation
• Reduced overall dimensions
• Improved reliability and cycle repeatability
• Increased respect for the environment
• Integrated cutting press control software, with easy to use graphic interface
• Cutting controlled simply by setting the height of the die-cutter.
CLAMPING FEEDER
The best cutting system is the one which gives the fastest working and largest saving in materials which depends not only on the shearing machine itself but also on the system feeding the machine. The clamping feeder has been carefully developed for both multiple strata materials and single materials, allowing a speed and a feeding accuracy that are twice that of traditional feed rollers systems; reducing the waste material to a minimum.
TECHNICAL SPECIFICATION
|
Type |
HYL3-250/300 |
|
Max cutting power |
250KN/300KN |
|
Cutting speed |
0.12m/s |
|
Range of stroke |
0-120mm |
|
The distance between top and bottom plate |
60-150mm |
|
Traverse speed of punching head |
50-250mm/s |
|
Feeding speed |
20-90mm/s |
|
Size of the upper pressboard |
500*500mm |
|
Size of the lower pressboard |
1600×500mm |
|
Power |
2.2KW+1.1KW |
|
Size of machine |
2240×1180×2080mm |
|
Weight of machine |
2100Kg |
