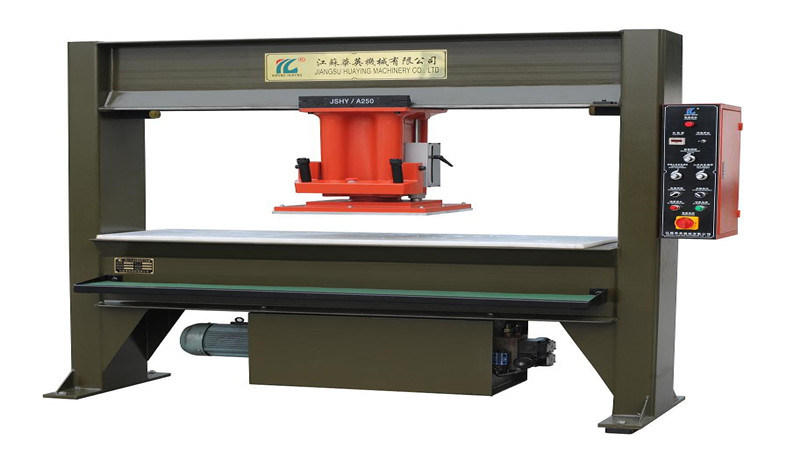

HYL4 atom type travel head hydraulic cutting press machine
Uses and features
The machine is mainly suitable for cutting one layer or layers of leather, rubber, plastic, paper-board, fabric, chemical fiber, non-woven and other materials with shaped blade.
1. Adopting the structure of gantry framework, so the machine has high intensity and keep its shape.
2. The punch head can automatically move transversely, so visual field is perfect and the operation is safe.
3. Return stroke of the platen can be set arbitrarily to reduce idle stroke and improve efficiency.
4. Using differential oil way, cut is rapid and easy.
Main Features
Pushbutton controls (time interlock synchronization during cutting phase) to ensure positive safety for the operator
Really exceptional trolley displacement speed
High power continuity
Low energy consumption
High reliability, no primary maintenance required
On Demand
Travelling Head Cutting Presses supplied by QIANGCHENG, focusing on the HYL4 Series which is the best performing cutting press available today. The most important features are:
- High Trolley Displacement Speed
- Low Energy Consumption
- Outstanding Reliability and Cutting Quality
Features that have always marked QIANGCHENG products as the World Leaders. The wide range of models, options and configurations make our Travelling Head Cutting Press able to satisfy any production need in a wide range of industrial applications.
Every machine in the range can be installed with an optional Cut Counter to control the exact number of pieces cut or to allow for the automatic stop of the cutting session as soon as the desired quantity is reached
To maximise productivity every HYL4 Series model can be equipped with our optional feeding system for materials supplied on a roll, available in both manual and motorised versions.
The exclusive and powerful braking system rapidly stops the trolley with virtually no wear and tear of the the motor gear box unit and so reduces the amount of primary maintenance required.
TECHNICAL SPECIFICATION
| HYL4-250 | HYL4-250A | HYL4-350 | HYL4-350A | HYL4-500 | HYL4-500A | |
| Working table size | 1600 mm | 1800 mm | 1800 mm | 2000 mm | 1800 mm | 2000 mm |
| Travel head size | 500x500 mm | 650x650 mm | 650x650 mm | 760 x 760 mm | 650x650 mm | 760 x 760 mm |
| Max cutting pressure | 25tons | 25tons | 35tons | 35tons | 50tons | 50tons |
| stroke | 5-150 mm | 5-150 mm | 5-150 mm | 5-150 mm | 5-150 mm | 5-150 mm |
| power | 2.2KW | 2.2KW | 3.0KW | 3.0KW | 4.0KW | 4.0KW |
| speed | 1.07 m/sec | 1.07 m/sec | 1.07 m/sec | 1.07 m/sec | 1.07 m/sec | 1.07 m/sec |
| Machine’s size | 2200 x720x2200 mm | 2400x720x205 0mm | 2500x900x2100 mm | 2700x900x2200 mm | 2500x900x2200 mm | 2700x900x2200 mm |
| N.W | 1600 Kg | 2100Kg | 2600kg | 3000 Kg | 3800kg | 5000kg |
